Schedule periodic runs with EventBridge

Schedule periodic runs with EventBridge

Everything is ready, however the data is only up to the current point. For the system to operate continuously and always update with the latest data, we need services to schedule and trigger

For app_details

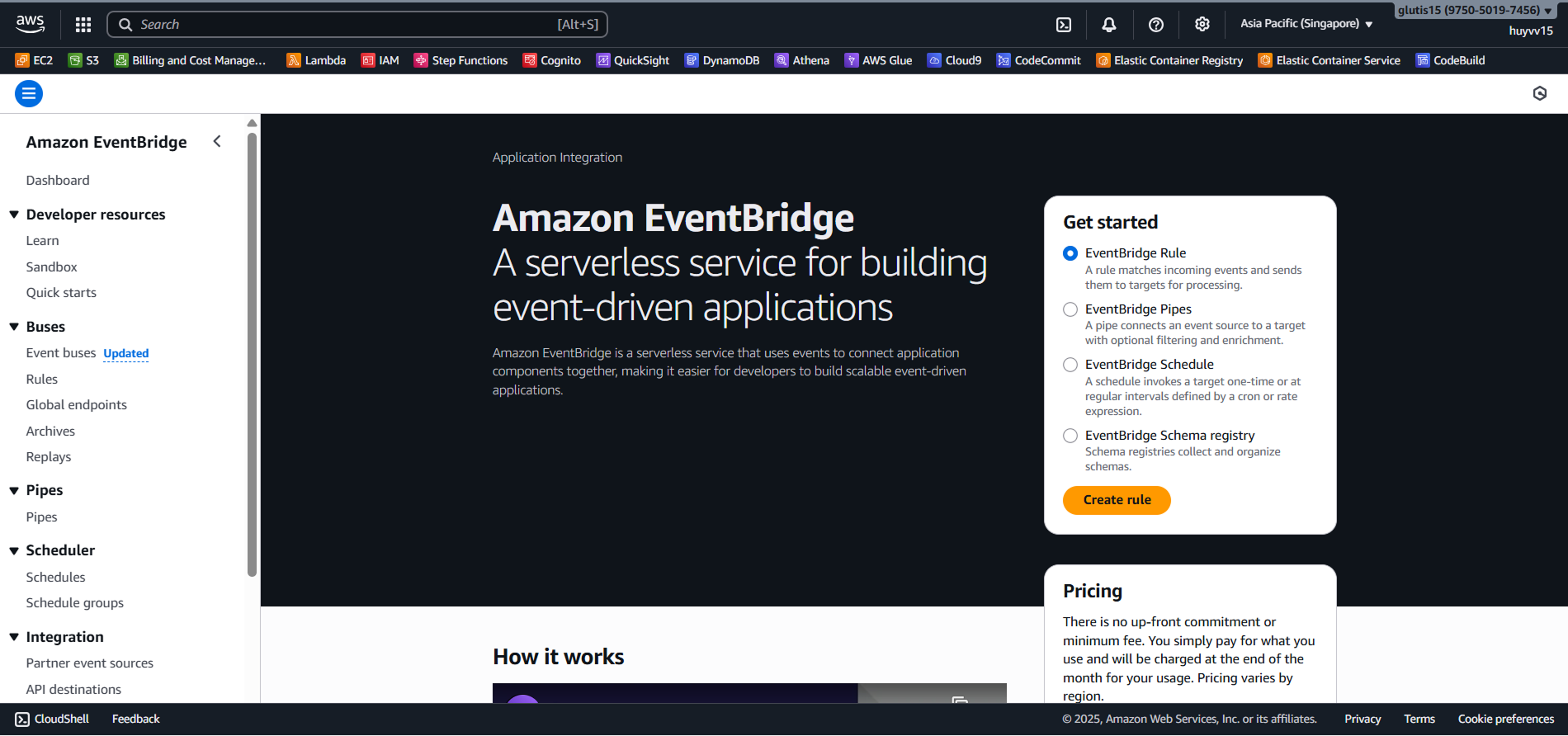

1. Access EventBridge

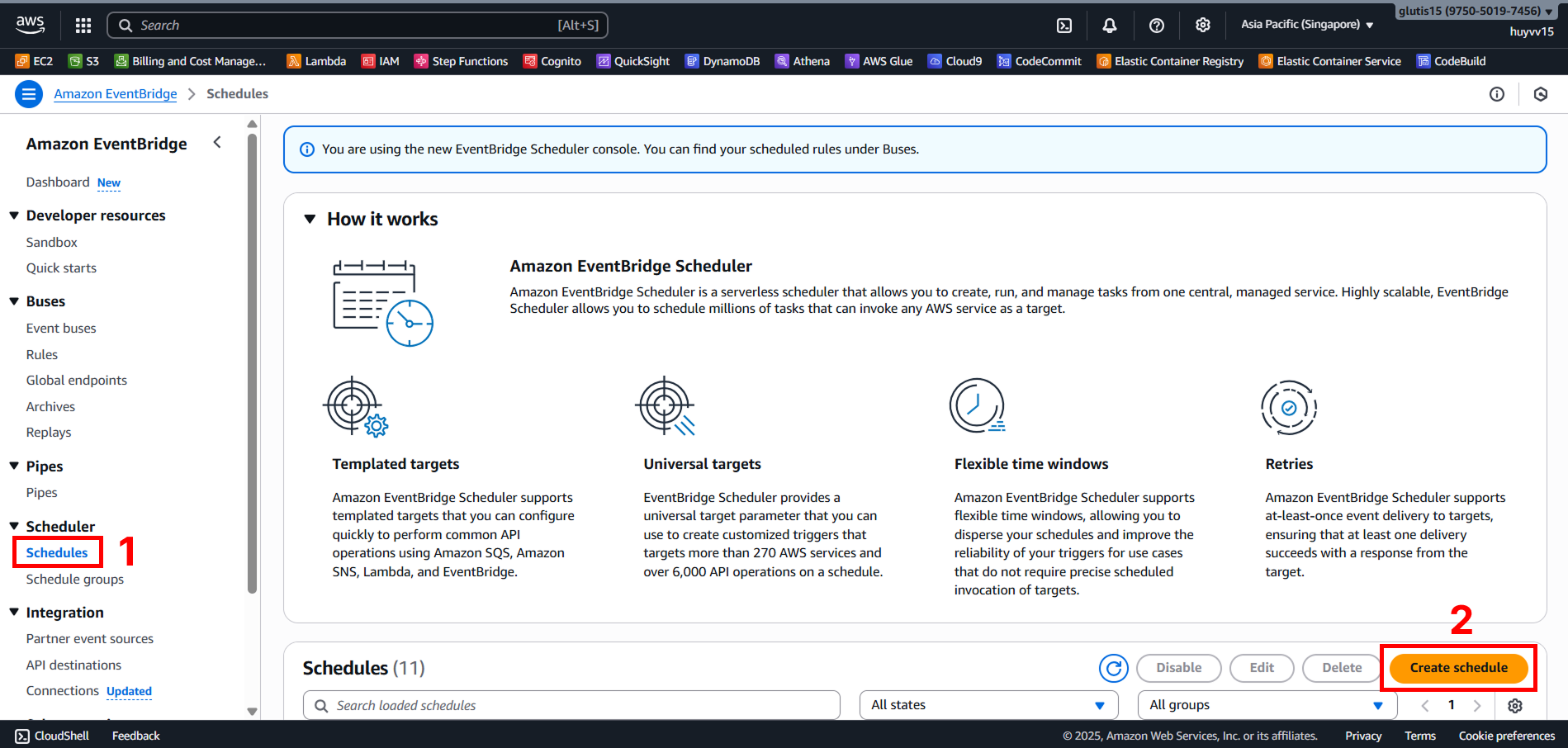

2. Select Schema
   • Select Create Schema

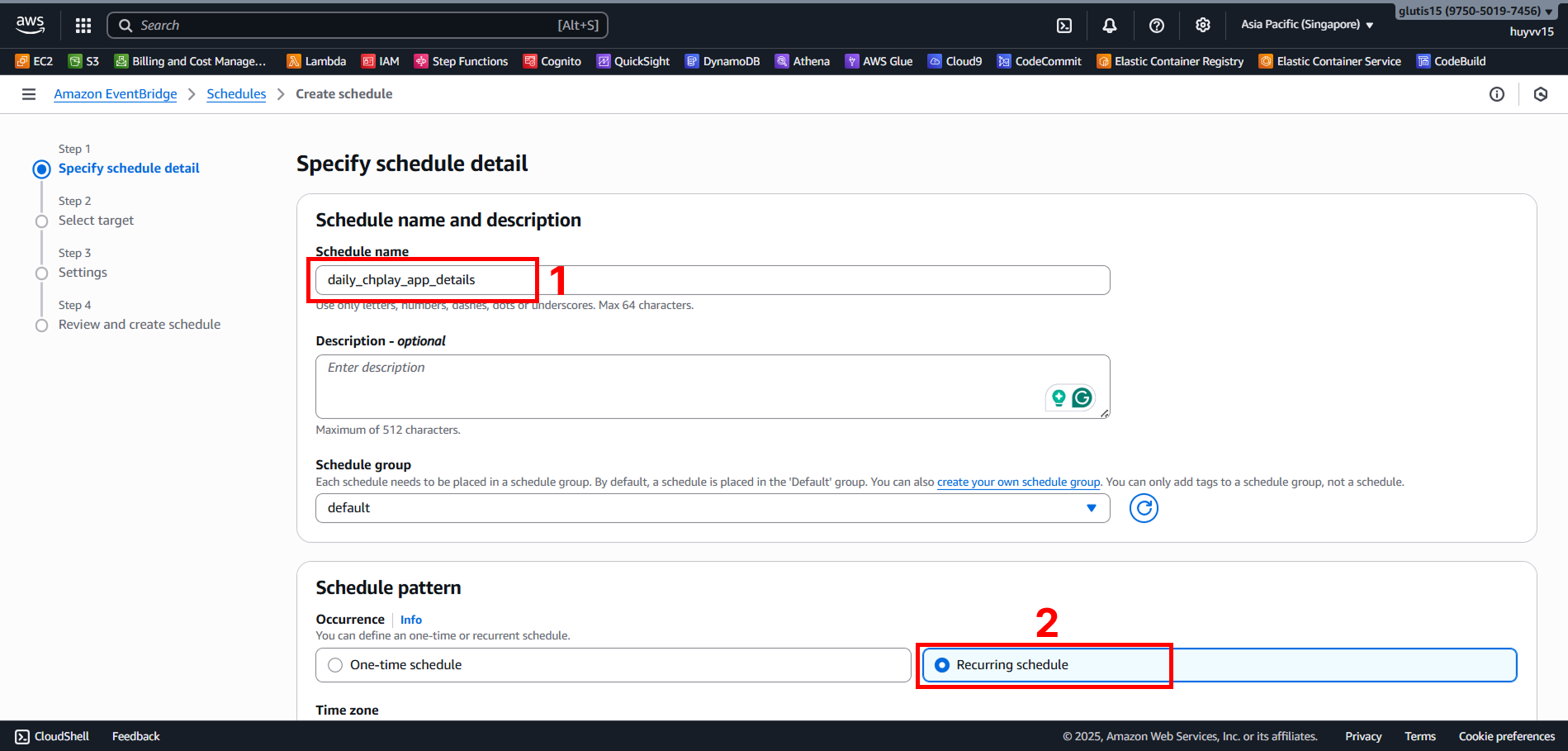

3. Fill in the information:
   • Schedule name: daily_chplay_app_details

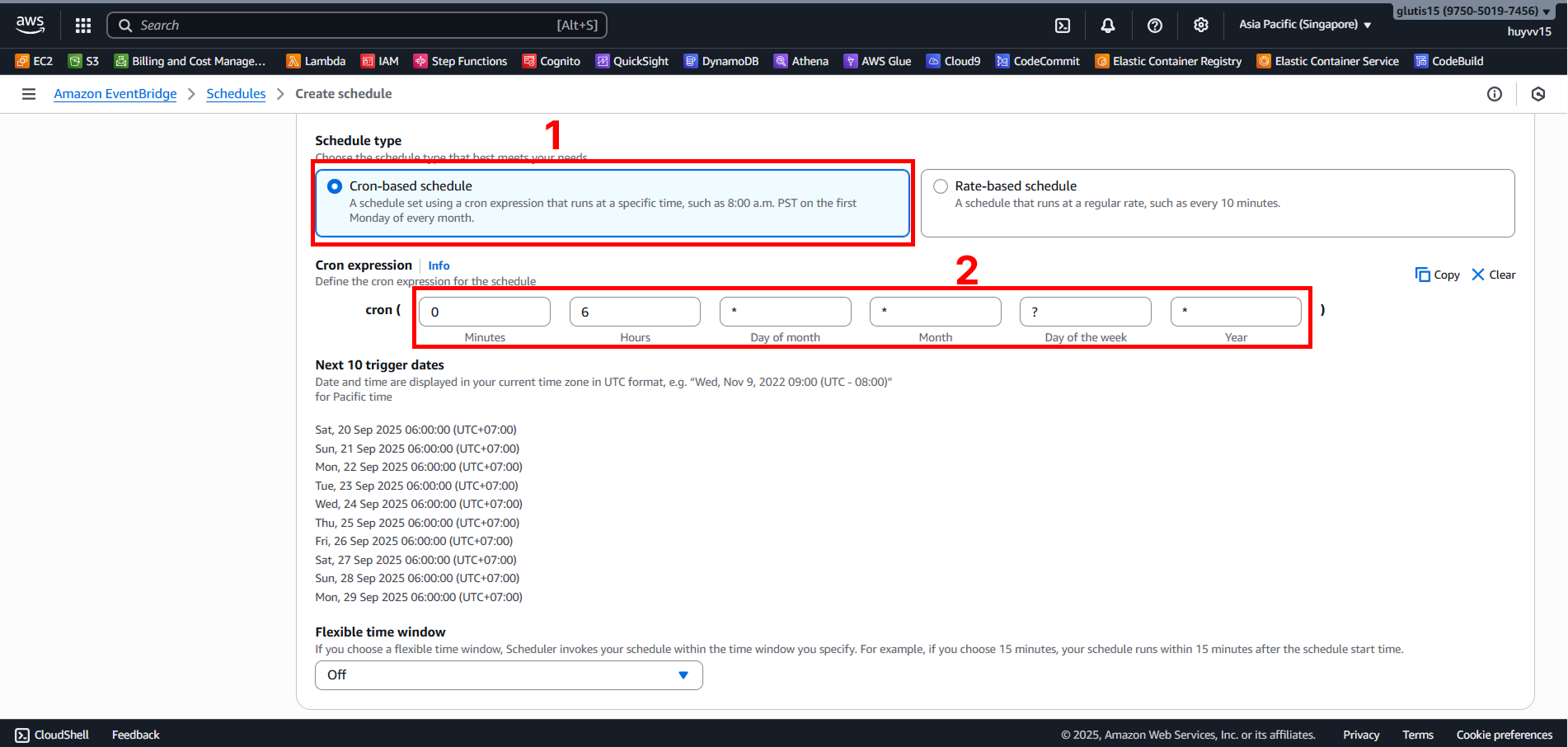

4. Set Cron time
   • Select Cron-based schedule
   • Select 0 6 * * *: runs at 6 AM every day
   • In Flexible time window select off
   • Select Next

Note: Flexible time window is the delay time when running jobs. If you select 5 minutes, the job will start 5 minutes later.

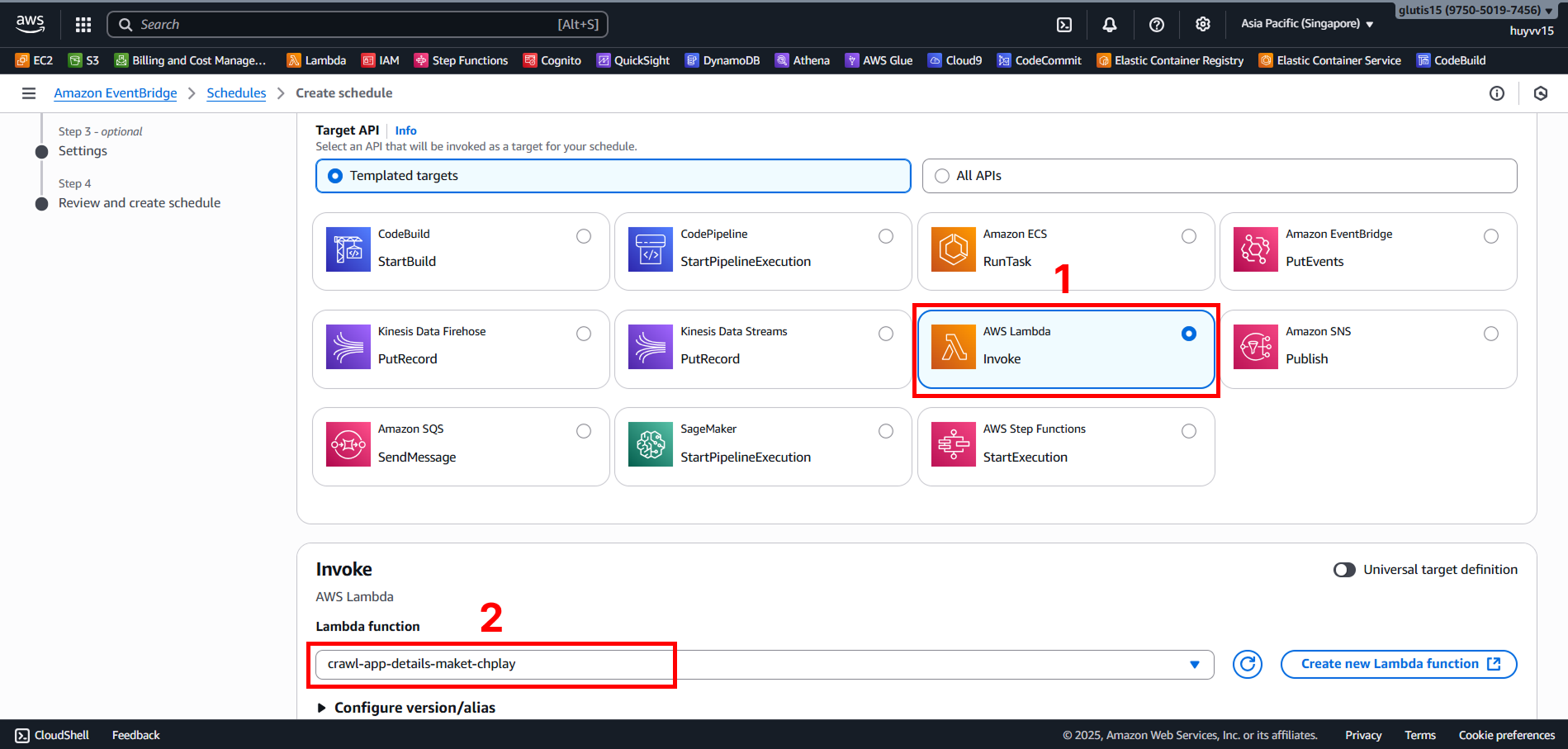

5. In Select target section:
   • Select AWS Lambda
   • Select Lambda function crawl-app-details-maket-chplay

6. Select Next

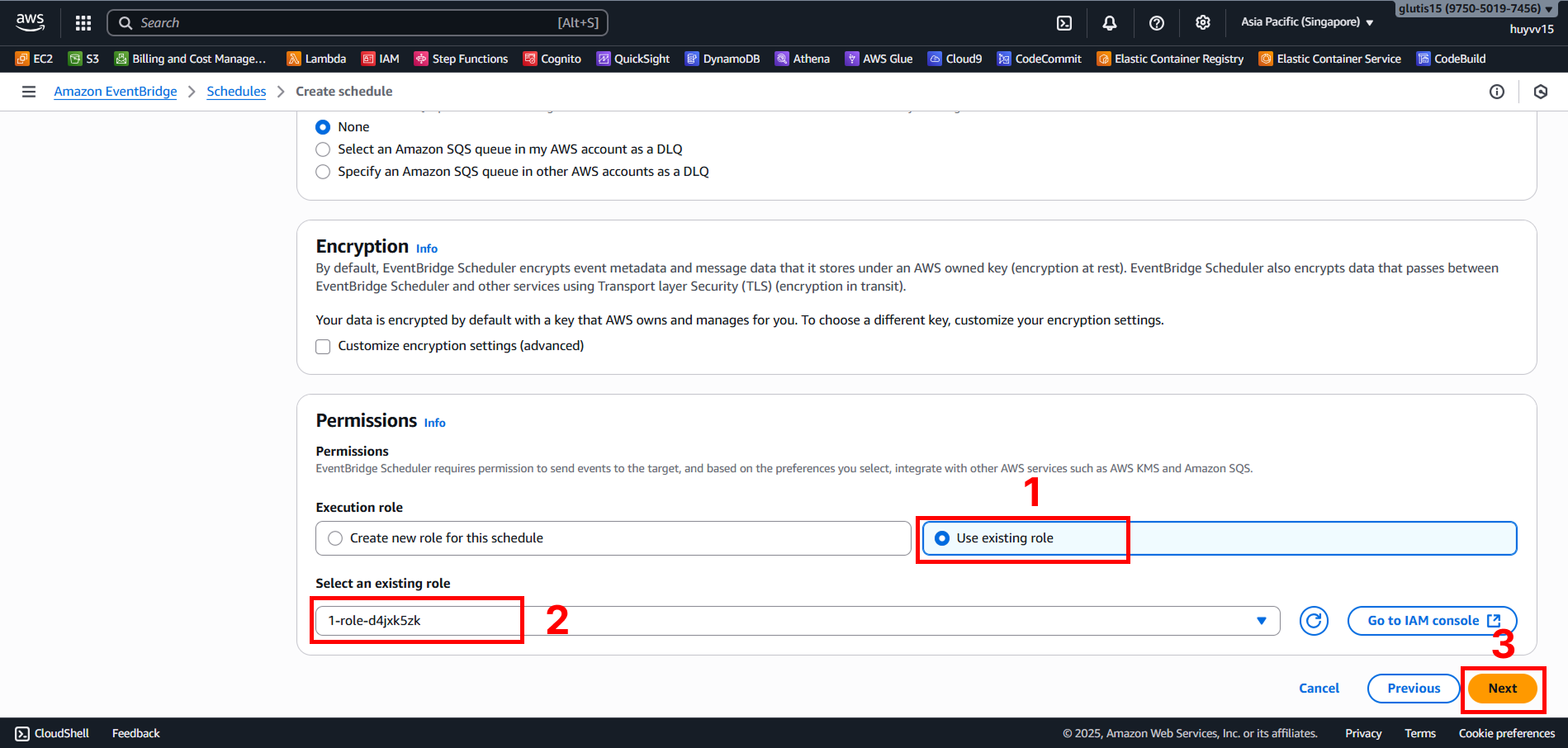

7. In the setting section:
   • Review everything once
   • Scroll to the bottom
   • Select Use existing role
   • Select previously created role: 1-role-d4jxk5zk
   • Select Next

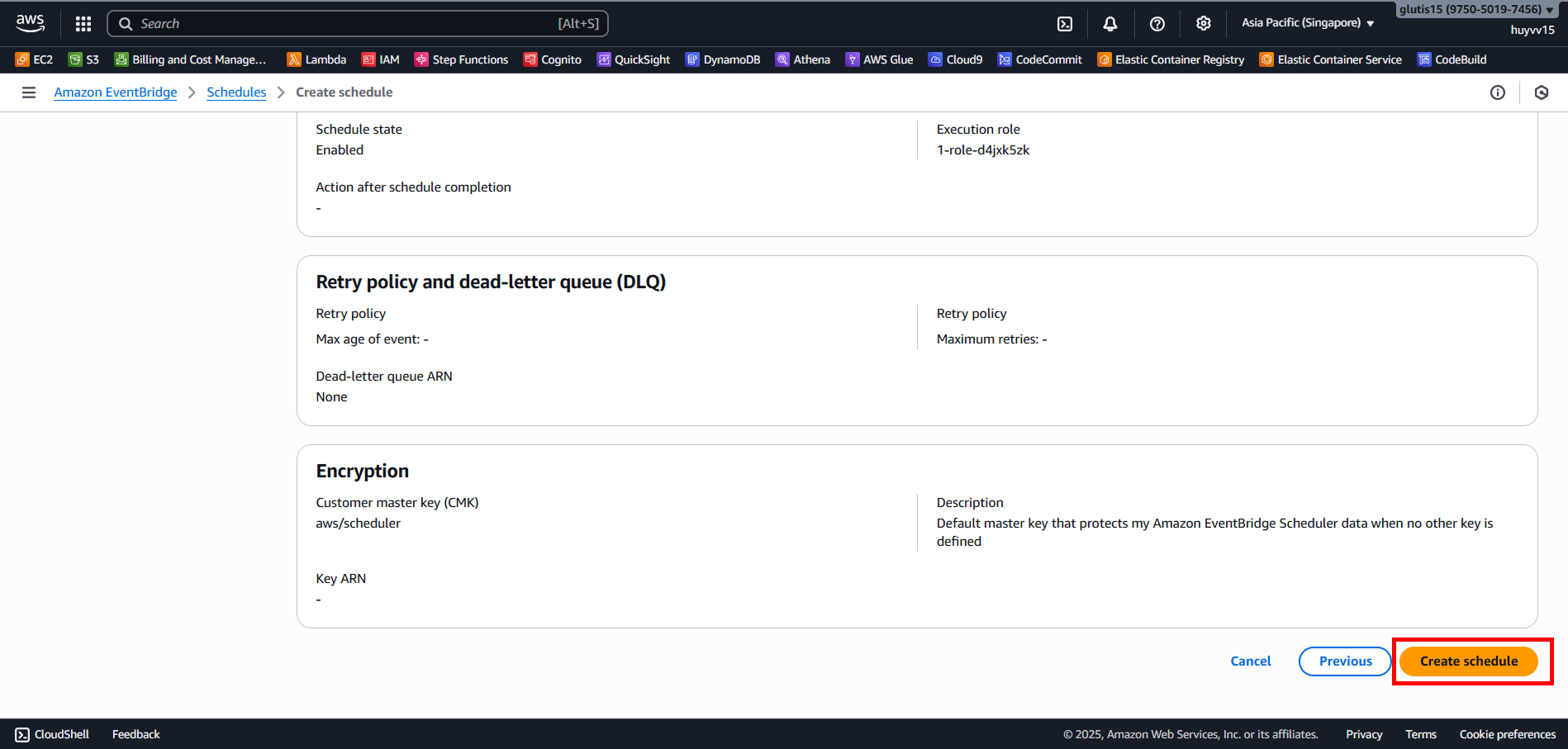

8. Review and create schedule
   • Select Create schedule

For app_reviews

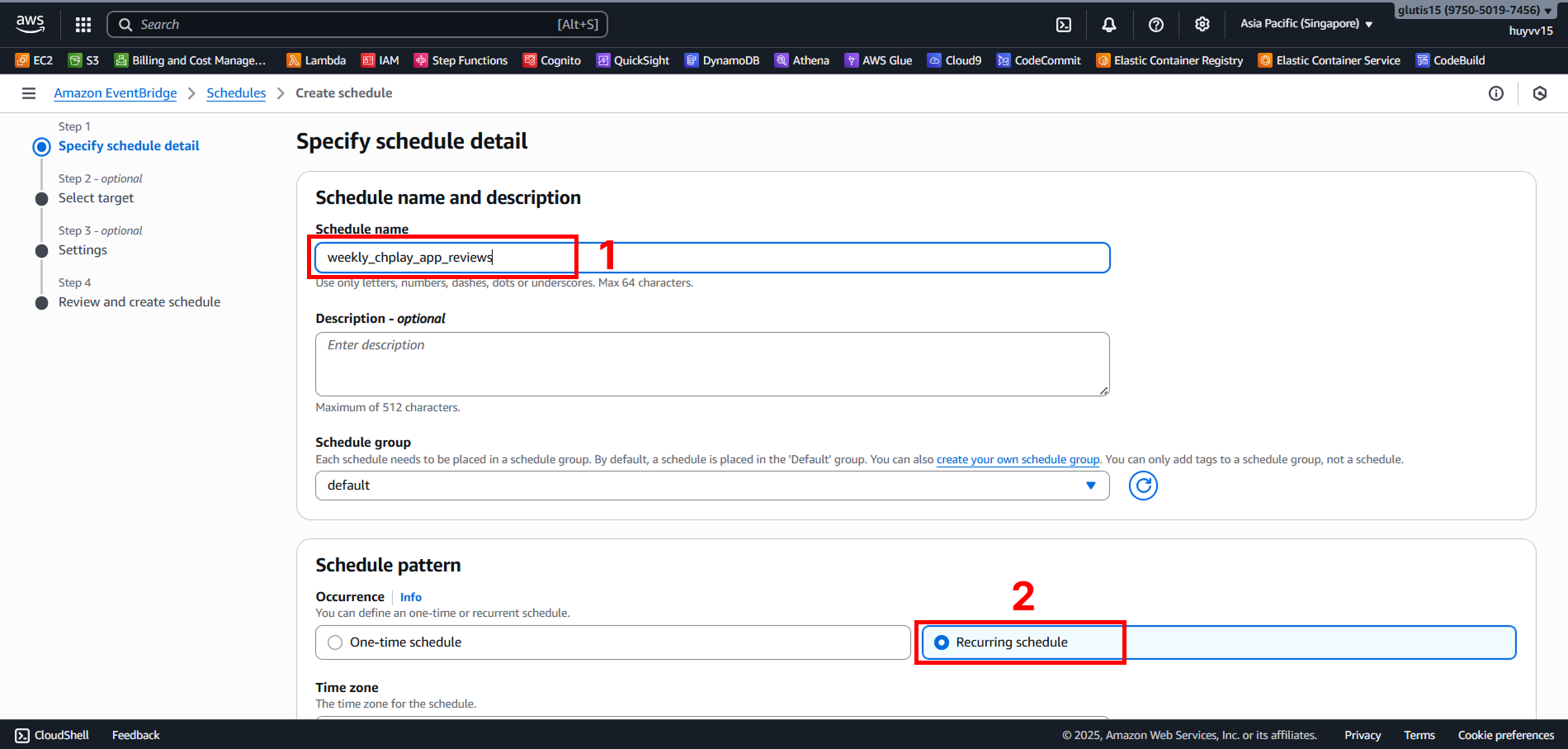

1. Detail section
   • Schedule name: weekly_chplay_app_reviews
   • Select Recurring schedule

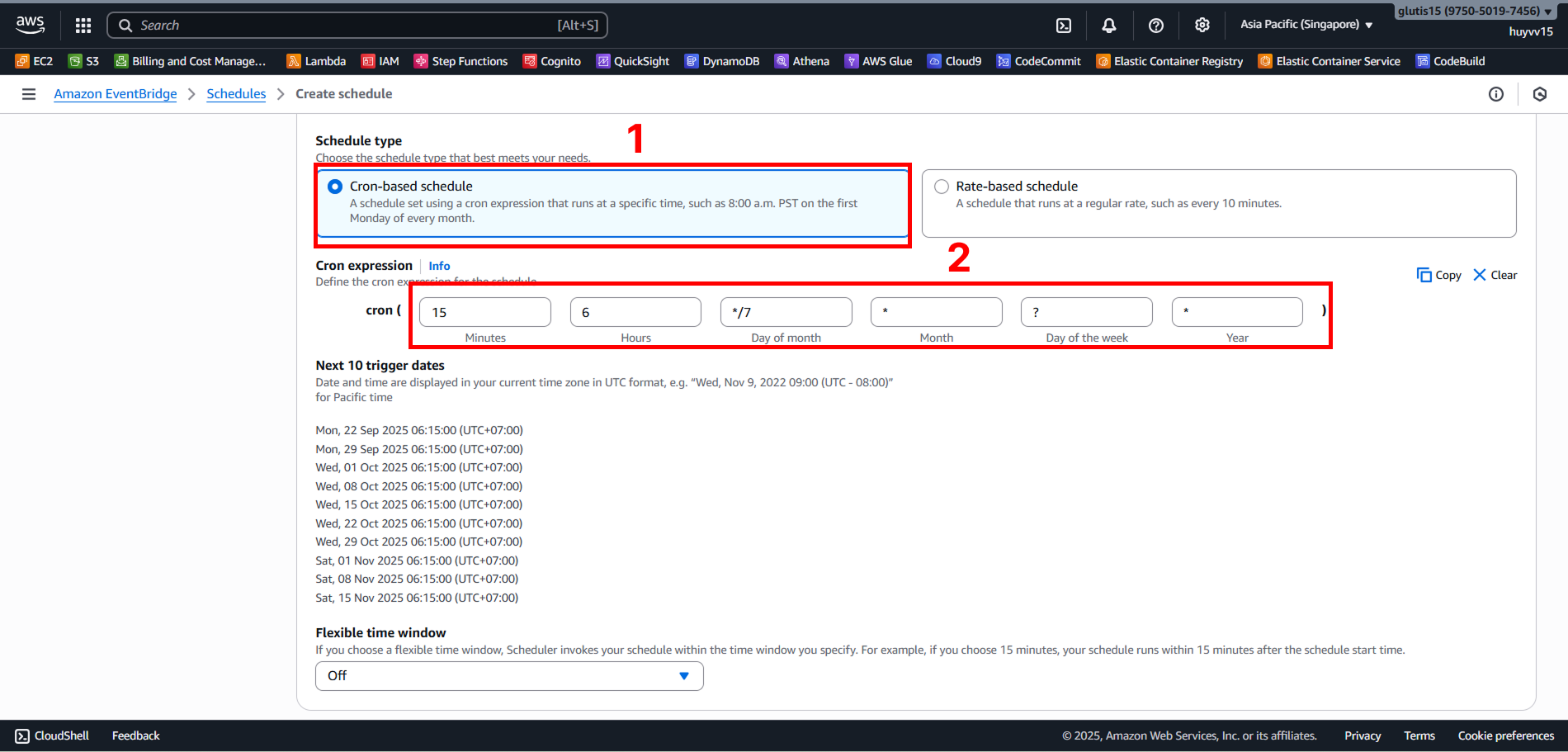

2. Set Cron time
   • Select Cron-based schedule
   • Select 15 6 */7 * *: runs at 6:15 AM every Sunday of each week
   • In Flexible time window select off
   • Select Next

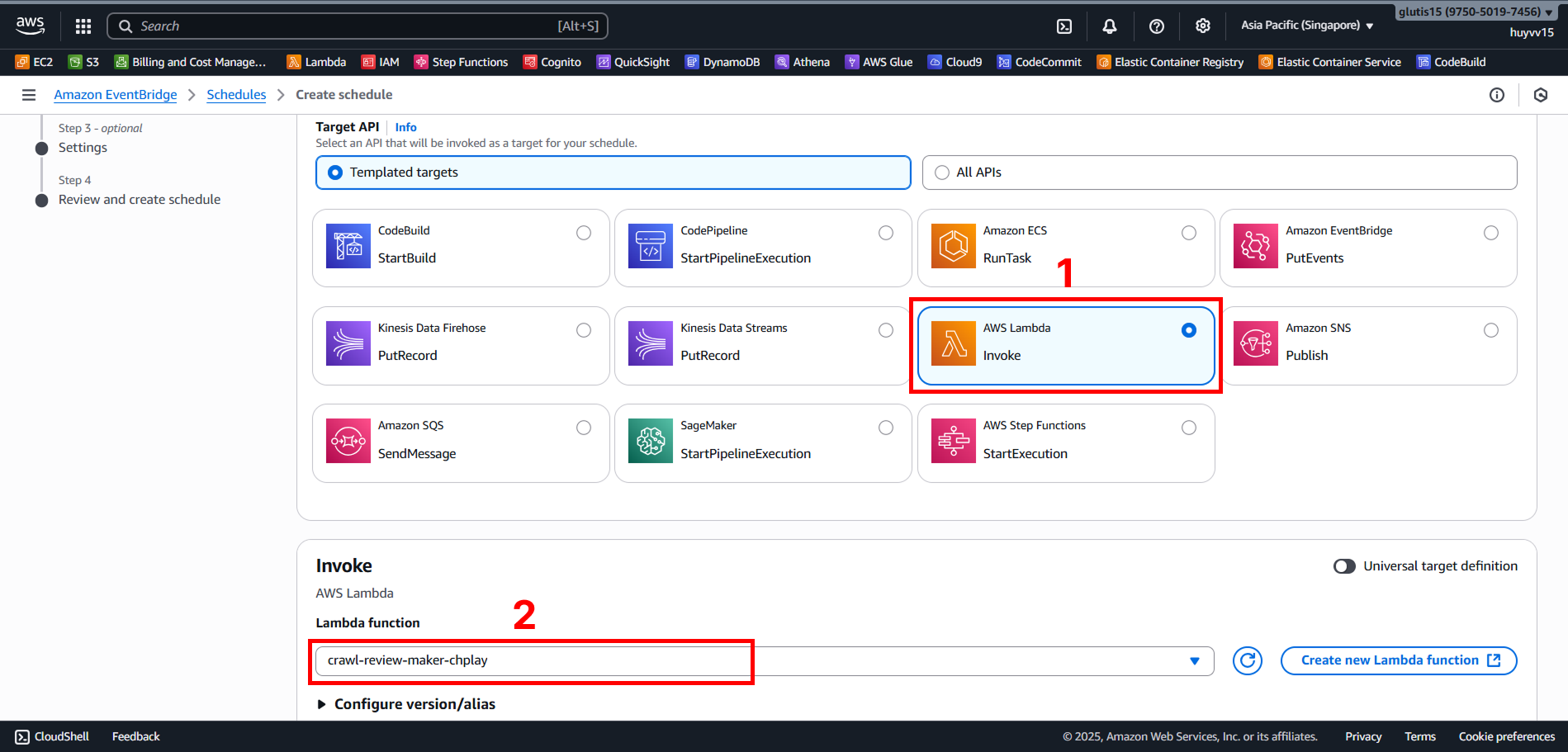

3. In Select target section:
   • Select AWS Lambda
   • Select Lambda function crawl-review-maket-chplay

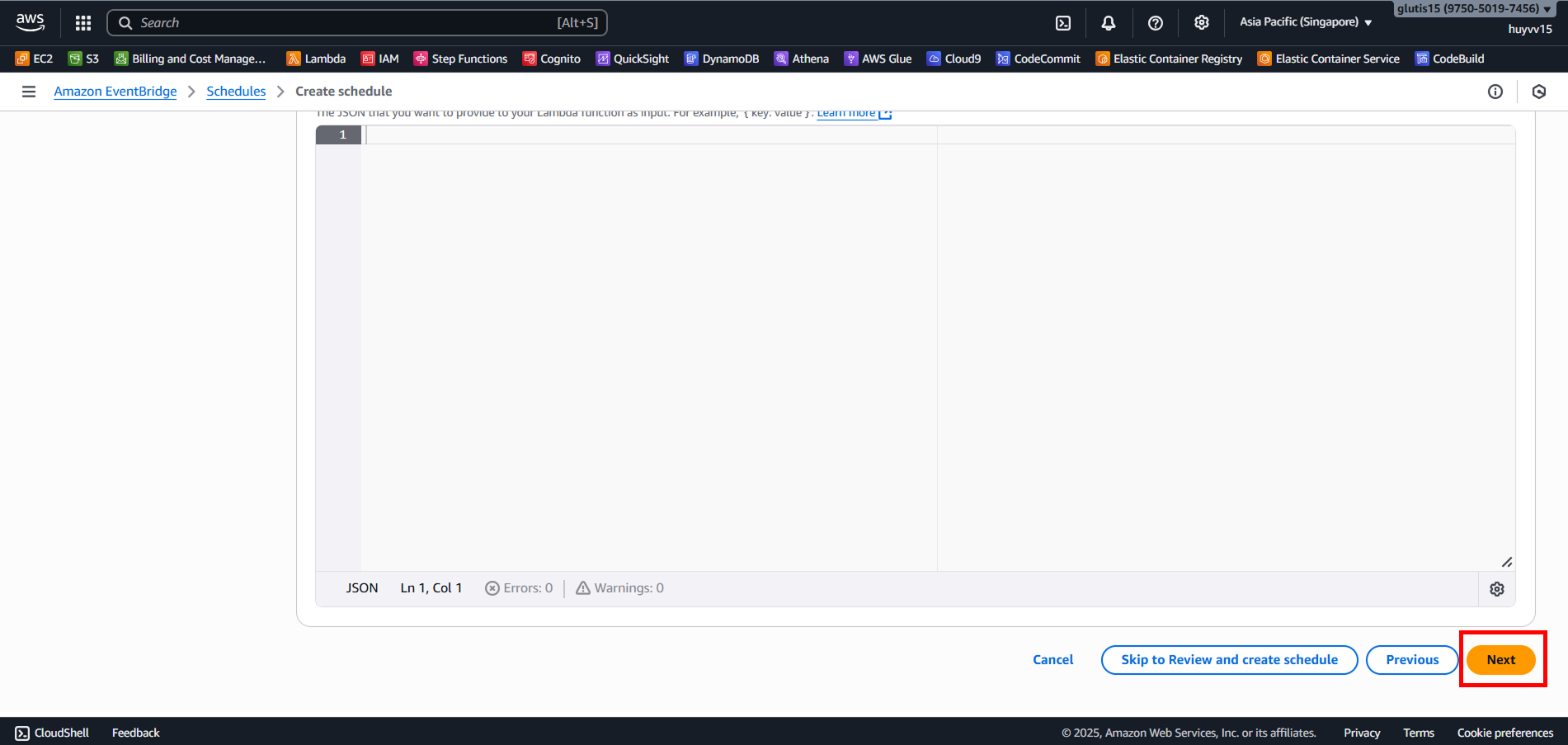

4. Select Next

5. In the setting section:
   • Review everything once
   • Scroll to the bottom
   • Select Use existing role
   • Select previously created role: 1-role-d4jxk5zk
   • Select Next

6. Review and create schedule
   • Select Create schedule

⇒ Do the same for the trigger lambda job processing from the sentiment model

With EventBridge, we have successfully set up periodic schedules for both app_details and app_reviews, and can similarly extend to other jobs like sentiment analysis. This scheduling helps the system:

• Automate the data crawling process without manual intervention.

• Ensure continuous updates with the latest data, maintaining accuracy and timeliness.

• Easily scale to many other tasks in the data pipeline.

Thanks to this, the entire data processing flow becomes proactive, stable, and capable of long-term operation. This is one of the important steps to build a more automated and intelligent data analysis system.
